Plastic Bottle Blowing Machine For 0.1L- 3L Mineral Water Jar / Food Storage Boxes

Place of Origin : Liaoning, China

Brand Name : Zonelink

Packaging Details : in wooden

Supply Ability : 100 Set/Sets per Year

Price : $13,000.00/sets >=1 sets

Plastic Processed : PET

Max.Bottle Height(mm) : 500 mm

Neck Diameter(mm) : 50 mm

Max.Bottle Diameter(mm) : 300 mm

Bottle Volume(ml) : 5000 ml

Condition : New

Application : Bottle

Year : 2021

Voltage : Customized

Dimension(L*W*H) : 3.85*2.3*2m

Hollow part volume : 5L

Clamping Force (kN) : 100

PLC Brand : MITSUBISHI

Power (kW) : 68

Weight (KG) : 4200 KG

Automation : Automatic

Warranty : 1 Year

Key Selling Points : Easy to Operate

Showroom Location : None

Applicable Industries : Food & Beverage Factory

Machinery Test Report : Provided

Video outgoing-inspection : Provided

Warranty of core components : 1 Year

Core Components : Bearing, Motor, Pump, Gear, PLC, Pressure vessel, Engine, Gearbox

After-sales Service Provided : Video technical support, Free spare parts, Online support

Product name : bottle blowing machine

Max bottle volume : 5L

Cavities quanity : 2/4/6

Power : 380V/220V/440V 50Hz/60Hz

Net Weight : 4200kg

Suitable bottle : 10ml-5L

Capacity range : 2400bph-12000bph

machine dimension : 3.85*2.3*2m

machine weight : 1900kg

Port : DALIAN PORT

Contact Now

Plastic blowing machines 0.1L- 3L PET bottles making machine mineral water jar/food storage boxes & containers made in C

Plastic Bottle Blowing Machine For 0.1L- 3L Mineral Water Jar / Food Storage Boxes

Advantages:
1,Adopt servo motor drive clamping mould,stretching and stepping,fulfill high precise ,high-speed operation,high
stability,energy-saving and environmental protection,etc.
2,Equipped with high pressure air recycling system,no need low pressure configuration,save cost and area.
3,Adopt Man-Machine interface to control,easy to operate,high rate of finished products;adopt modular assembly design,easy to repair.
4,Install and locate mould precisely and convenient to exchange.
5,Suitable for (PET):edible oil bottle,mineral water bottle,beverage bottle,pharmaceuticals bottle, dairy bottle and cosmetic
bottle,etc.

Plastic Bottle Blowing Machine For 0.1L- 3L Mineral Water Jar / Food Storage Boxes

No

Model

Cavity number

Suitable bottle volume

Capacity

1

ZL-2-0.8L-2800

2

30ml-800ml

2800bph

2

ZL-4-0.8L-6000A

4

30ml-800ml

6000bph

3

ZL-6-0.8L-9000A

6

30ml-800ml

9000bph

4

ZL-2-1.5L-1800

2

30ml-1500ml

1800bph

5

ZL-4-1.5L-3500

4

30ml-1500ml

3500bph

6

ZL-4-2L-4500A

4

30ml-2000ml

4500bph

7

ZL-7-0.8L-12000A

7

30ml-800ml

12000bph

8

ZL-10-0.8L-15000A

10

30ml-800ml

15000bph

Plastic Bottle Blowing Machine For 0.1L- 3L Mineral Water Jar / Food Storage Boxes

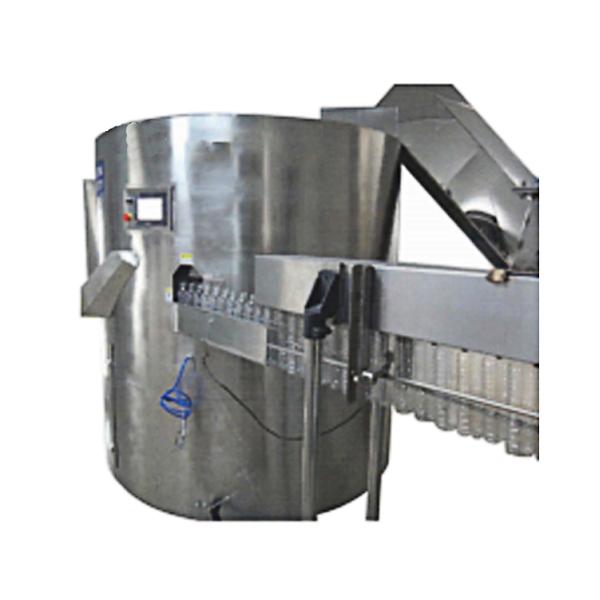

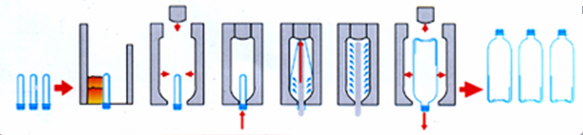

First step:Use hoist convey the preform to the preform feeding system.
Second step:Use manipulator put preform on the preform holder.
Third step:Through chain convey the preform to heating system,the preform uniform heating in the oven.
Forth step:fulfill sealing,stretching and blowing bottles in blowing system.
Fifth step:Use manipulator keep the action of bottle taking automatically.
Finish blowing bottles process.

Plastic Bottle Blowing Machine For 0.1L- 3L Mineral Water Jar / Food Storage Boxes

Plastic Bottle Blowing Machine For 0.1L- 3L Mineral Water Jar / Food Storage Boxes

Plastic Bottle Blowing Machine For 0.1L- 3L Mineral Water Jar / Food Storage Boxes

Plastic Bottle Blowing Machine For 0.1L- 3L Mineral Water Jar / Food Storage BoxesPlastic Bottle Blowing Machine For 0.1L- 3L Mineral Water Jar / Food Storage BoxesPlastic Bottle Blowing Machine For 0.1L- 3L Mineral Water Jar / Food Storage BoxesPlastic Bottle Blowing Machine For 0.1L- 3L Mineral Water Jar / Food Storage BoxesPlastic Bottle Blowing Machine For 0.1L- 3L Mineral Water Jar / Food Storage BoxesPlastic Bottle Blowing Machine For 0.1L- 3L Mineral Water Jar / Food Storage BoxesPlastic Bottle Blowing Machine For 0.1L- 3L Mineral Water Jar / Food Storage Boxes

Plastic Bottle Blowing Machine For 0.1L- 3L Mineral Water Jar / Food Storage Boxes

Plastic Bottle Blowing Machine For 0.1L- 3L Mineral Water Jar / Food Storage Boxes

Plastic Bottle Blowing Machine For 0.1L- 3L Mineral Water Jar / Food Storage Boxes

The company has a professional after-sales service technical team,with high quality products,excellent service,dedication to all walks of life is our commitment to the user.In strict accordance with the relevant standards and standards of the state to make,test and accept,provide free installation quidance,assist debugging and responsible for training and operation.The staff of the company will fulfill the quality commitment to the customers with higher enthusiasm and better service.
